Two-Component Silicone Coating Machine Double Glass Production Line
Basic Info
Model NO. | NHZ |
Certification | CE, ISO |
Application Area | Chemical |
Layout Type | Horizontal |
Mixing Drum Shape | Circular Groove |
Additional Capabilities | Milling, Drying, Granulating |
Operating type | Continuous Operating |
Condition | New |
Material | Customizable |
Power | Customizable |
Heating Way | Customizable |
Warranty Period | 1 Year |
Transport Package | Customizable |
Specification | 50L to 5000L |
Trademark | JCT |
Origin | Foshan |
HS Code | 8474390000 |
Production Capacity | 5000picecs/Year |
Product Description

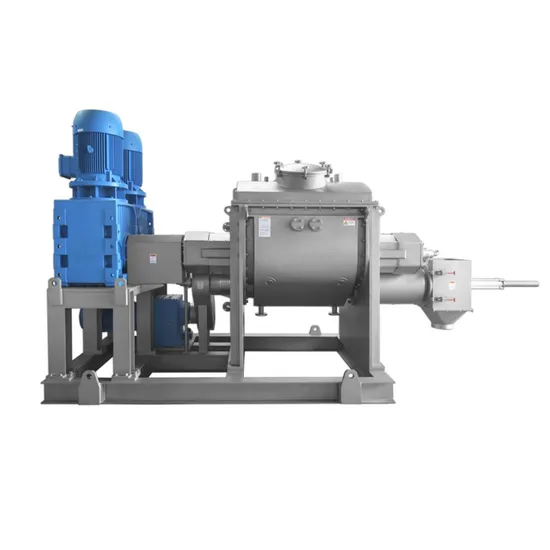

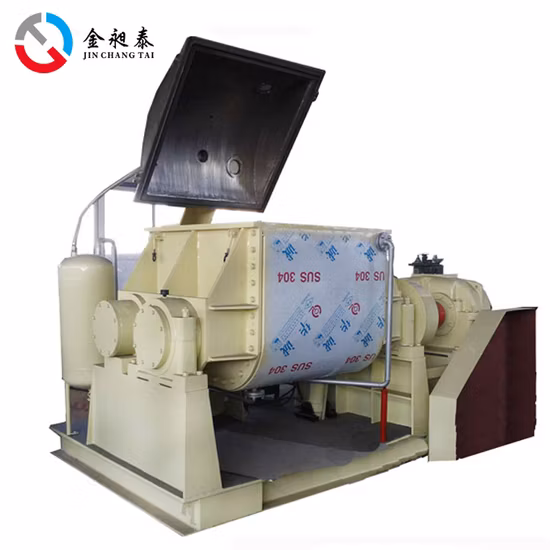

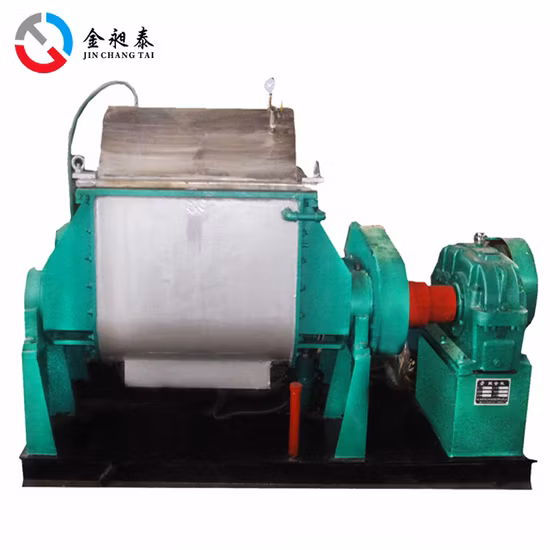

Arm Kneader is an ideal equipment , design for mixing , kneading , crushing , dispersing high viscosity plastic materials , and has good performance in uniform mixing , no dead ends and high efficiency kneading It has six major components . kneading part , base part , the transmission system , vacuum system , hydraulic system , electric control system , etc .Place of all the contact material is made of stainless steel . There are three choices of oil circulation , electric heating , steam and water cooling.The heating and cooling can be carried out according to the requirements made of the cylinder jacket , wallboard jacket ,stirring blade pass water through hot oil structure . Discharge hydraulic cylinder turned ; screw the material under the loading and other forms .The paddle shaft seal with a unique equilibrium structure of the vacuum tank to prevent the the fillers wear particles into the cylinder , particularly favorable to improve the system vacuum and material purity.It is widely used in many industries : high viscosity sealant , silicone rubber , BMC , adhesive , also , used in batteries , ink , pigments , dyes , pharmaceuticals , resins , plastics , rubber , cosmetics ects.Introduction
1) Kneading machine does very well in mixing, kneading, crushing and dispersing for high viscosity liquid materials, with no dead point.
2)Two sigma or Z-type blades.
3)Equipped with inverter for frequency control.
4)Vacuum and high pressure are available

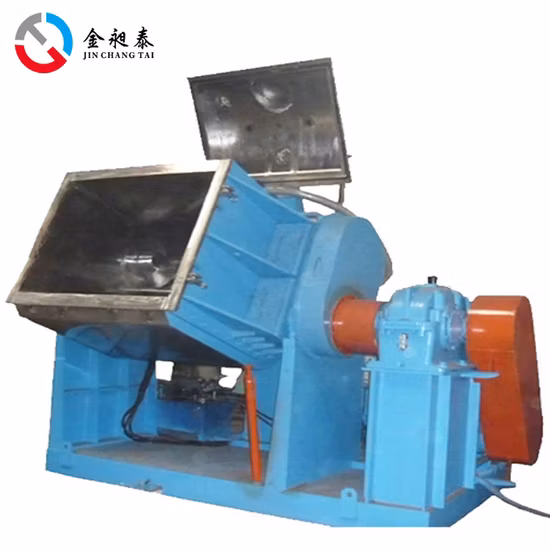

5)The cylinder is opened hydraulically.
6)Discharge mode: Hydraulic tilting, Bottom pumping,or Screwing.
7)With jacket outside of the cylinder, for heating or cooling.
8)Heating mode: Hot oil, Electric or Steam.
9)All the parts that contact with material are made of stainless steel.
JCT Jacketed Heating Vacuum Kneading Machine (NHZ-600)
Technical parameters
Model
| Chamber Volum(L) | Drive motor power (KW) | Mixing Speed (rpm) | Discharge mode | Heating | |||||
Full volume | Feeding amount | Paddle fast / slow paddle | Optional parameters | Optional parameters | ||||||
NHZ-5 | 5 | 3 | 2.2-4 | 75/50 | Manual / Hydraulic tilting | Running Hot oil | Electrical heating | Pressure Steam | ||
NHZ-20 | 20 | 12 | 3-5.5 | 63/42 | ||||||
NHZ-50 | 50 | 30 | 4-7.5 | 63/42 | ||||||
NHZ-100 | 100 | 60 | 5.5-7.5 | 43/29 | ||||||
NHZ-200 | 200 | 120 | 7.5-15 | 43/29 | Hydraulic tilting | The bottom pumping | Screw extruding | |||
NHZ-300 | 300 | 180 | 11-18.5 | 43/29 | ||||||
NHZ-500 | 500 | 300 | 18.5-30 | 43/29 | ||||||
NHZ-1000 | 1000 | 600 | 22-55 | 32/22 | ||||||
NHZ-1500 | 1500 | 900 | 30-90 | 32/22 | ||||||
NHZ-2000 | 2000 | 1200 | 45-110 | 32/22 | ||||||
NHZ-3000 | 3000 | 1800 | 55-130 | 33/22 | ||||||
Remarks: 1,Temperature range: 0-300°, 2, Pressure range:-0.1-0.6MPa, 3,Inverter for frequency control if necessory. |
1. Unsaturated resins, alkyd resins, acrylic resins, polyurethane and other complete sets of production equipment;2. Latex, white latex, rubber coating, film coating, all-purpose adhesive and other complete sets of production equipment;3. Glass, plastic, silicone rubber, sealants and other sets of production equipment;4. Raw rubber sets of production equipment;5. Silicone waste pyrolysis recycling old solvent distillation recovery sets of production equipment;6. Hot melt adhesive sets of production equipment;7. Various types of powder mixing auger sets of production equipment;8. Various non-standard chemical equipment design, production and installation.
Q : Can you send the formula for the products we want to make ?A : Our machines can be used for many kinds of product making ,such as Resin , Paint, Adhesive , Cosmetic , Food , Chemicals . There are many kinds of these products , so it's impossible for us to know all the formulas and technologies . We can assist you to find the raw material list you need , and after you place order with us , we can help you to find formula and technology , there will engineers to teach you how to make the product , and the cost will be on your account.
Q : Do you have machines in stock ?
A : Yes , but just the small-scale machines Machines are different with other products , most of the large-scale machines are designed according to our customers 'requirements different customers have different production requirements , so the technical parameter is different for most machines On the other hands , most of the our machines will cover a large area , so once the machines are finished , we will effect shipment after QC .
Q : Can you send the detailed drawings of the machine to us before we place order ?
A : We can send you a draft drawing of the machines , and after you place order and pay the deposit , our engineer will design the send you the detailed drawings . Once you confirm without questions , we will put it into production.
